AS-W04: AES W04 replacement

Description:
AS-W04: Repalcement of AES W04 Roplan RT73 Sterling 280Y Vulcan 1688Y

Share this site:

  • Product Detail
  • Make an inquiry
AS-W04: AES seal W04,Roplan RT73,VULCAN 1688Y mechanial seal
Structure Description:
Equivalent to AES seal W04,Roplan RT73,VULCAN 1688Y mechanial seal
Operating Limits:
Temperature: -40℃ to +200℃
Pressure: ≤0.8MPa
Speed: ≤18m/s
Standard Size: 20-80mm
Materials:
Stationary Ring： Silicon Carbide, TC, Carbon
Rotary Ring： TC, Steel
Secondary Seal：NBR,EPDM,Viton
Spring and Metal Parts：304/316

Applications：Clean water,sewage water,oil and other moderately corrosive fluids.

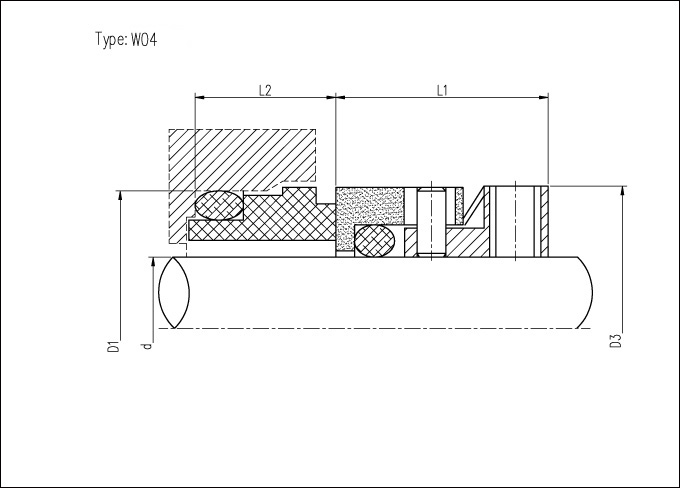

AS-W04 Dimenstions(mm)
d D1 D3 L1 L2
30 40.0  41.0  19.1 9.3
35 44.5 45.5 19.1 9.2
50 62.0  61.9 21.1 10.4
70 85.0  88.9 25.8 14.1
80 95.0  101.0  25.8 16.2
