AS-W01: AES W01 replacement

Description:
AS-W01: Repalcement of AES W01 John crane 80(DF/FP) Flowserve 168 Roplan 800 Roten 7K Sterling 280 Vulcan 1688

Share this site:

  • Product Detail
  • Make an inquiry
AS-W01: AES W01 mechanical seal
Structure Description:
Equivalent to John Crane 80 (DF/ FP) seal Aesseal W01 seal Flowserve 168 seal Latty T510 Roplan 800/ 850 seal Roten 7K seal Sterling 280 seal
Operating Limits:
Temperature:-40℃ to +200℃
Pressure:≤0.8MPa
Speed:≤18m/s
Standard Size:20-80mm

Materials:
Stationary Ring: Silicon Carbide, TC, Carbon
Rotary Ring: TC, Steel
Secondary Seal:NBR,EPDM,Viton
Spring and Metal Parts:Steel

Applications:
Clean water,sewage water,oil and other moderately corrosive fluids.

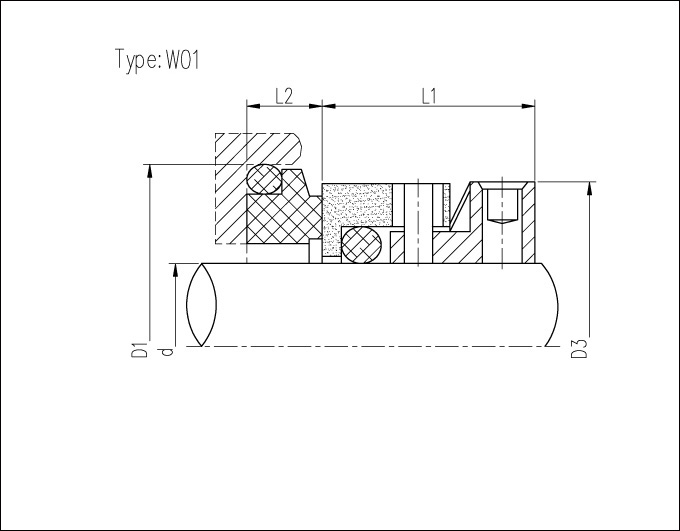

AS-W01 Dimensions(mm)
Size D1 D3 L1 L2
15.8  28.50  27.00  19.1 6.30
16.0  28.50  27.00  19.1 6.30
19.1  31.70  30.00  19.1 6.30
24.0  35.40  34.10  19.1 7.60
28.0  42.00  40.00  19.1 7.60
28.6  41.20  39.50  19.1 7.60
30.0  42.70  41.00  19.1 7.60
31.7  44.20  42.40  19.1 7.60
32.0  44.40  42.40  19.1 7.60
35.0  47.60  45.50  19.1 7.60
38.0  53.90  51.80  21.1 8.10
44.4  60.30  58.20  21.1 8.10
47.6  63.50  61.40  21.1 8.10
50.0  63.90  61.90  21.1 8.10
50.8  66.60  64.60  21.1 9.60
53.9  73.00  71.00  21.1 9.60
54.0  73.90  71.00  21.1 9.60
54.6  75.00  72.00  21.1 9.60
55.0  75.00  72.00  21.1 9.60
63.0  83.00  79.30  25.8 9.10
63.5  88.00  79.30  25.8 9.10
69.8  95.20  88.90  25.8 9.10
73.0  98.40  94.00  25.8 9.10
75.0  100.4  96.00  25.8 9.10
