AS-ROB: Flowserve RO replacement

Description:
AS-ROB: Perfect replacement of Flowserve RO mechanical seal

Share this site:

  • Product Detail
  • Make an inquiry

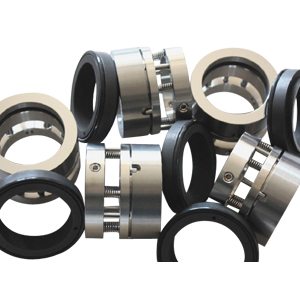

AS-ROB: Fowserve RO mechanical seal
Structure Description:
Equivalent to Flowserve RO type seal
Mutiple spring design
Operating Limits:
Temperature:-20--180℃
Speed:15m/s
Pressure:10bar
Standard Size:20--100mm
Materials:
Seal Ring:Car,Sic,Ssic,TC
Secondary seal:NBR,Viton,EPDM etc.
Spring and metal parts:304,316,HAST.C

AS-ROB  Dimensions(mm)
Size d D3 D6 D7 D8 L3 L4 L8
20 20 34 29 35 3 35 13 21
22 22 36 31 37 3 35 13 21
24 24 38 33 39 3 35 13 21
25 25 39 34 40 3 35 13 21
28 28 42 37 43 3 35 13 21
30 30 44 39 45 3 35 13 21
32 32 46 42 48 3 35 13 21
33 33 47 42 48 3 35 13 21
35 35 49 44 50 3 35 13 21
38 38 54 50 56 4 38 13 21
40 40 56 52 58 4 38 13 21
43 43 59 55 61 4 38 13 21
45 45 61 57 63 4 38 13 21
48 48 64 60 66 4 38 13 21
50 50 66 62 68 4 39 13 21
53 53 69 65 71 4 40 13 21
55 55 71 67 73 4 40 13 21
58 58 76 70 79 4 41 16 24
60 60 78 72 81 4 41 16 24
63 63 81 75 86 4 41 16 24
65 65 83 77 97 4 41 16 24
68 68 86 81 90 4 41 16 24
70 70 90 83 92 4 42 16 24
75 75 95 88 97 4 42 16 24
80 80 100 96 105 4 42 16 24
85 85 105 101 110 4 43 16 24
90 90 110 106 115 4 45 16 24
95 95 115 111 120 4 45 16 24
100 100 120 116 125 4 45 16 24
