AS-10R/AS-10T: John crane 10R/10T replacement

Description:
AS-10R/AS-10T: Perfect replacement of John crane 10R/10T mechanical seal

Share this site:

  • Product Detail
  • Make an inquiry

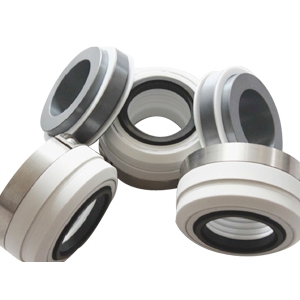

AS-10R&SS-10T John Crane Type 10R,Type 10T mechanical seal
Structure Description:
Equivalent to John Crane 10R&10T
PTFE bellows design, Outside mounted,used in strong corrosive chemical occasions
Operating Limits:
Temperature:-20---120℃
Speed: 10m/s
Pressure: 5bar
Standard size: 1"--2"
Material:
Seal ring: Car,Sic,Ssic,Ceramic,PTFE,Glassfill
Secondary seal: PTFE
Spring and metal parts:304,316

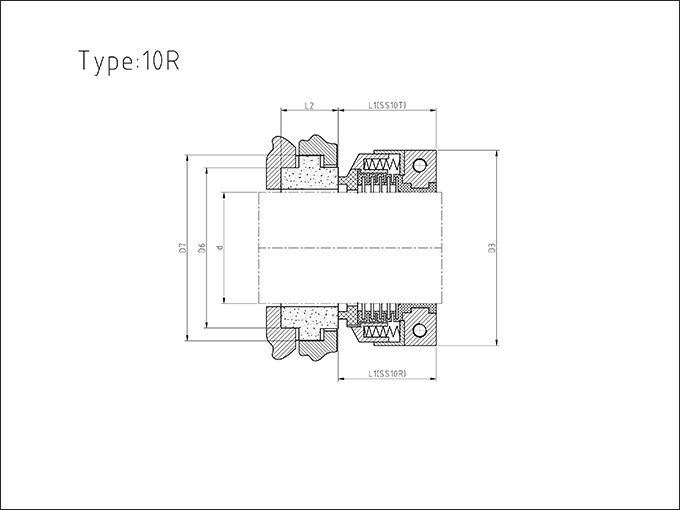

AS-10R&SS-10T Dimensions(mm)
d(inch) D3(mm) D6(mm) D7(mm) L1(mm) L2(mm)
1.000 60 42.86 54 33.2 17.6
1.125 67 50.80 65 36.2 27.0
1.250 69 53.98 68 37.2 27.0
1.375 72 57.15 71 38.2 27.0
1.500 76 63.50 78 38.2 27.0
1.625 80 66.68 81 40.2 27.0
1.750 84 69.85 84 40.2 27.0
1.875 86 73.03 87 43.2 27.0
2.000 90 79.38 97 43.2 33.3
