AS-CR1: Grundfos pump seal

Description:
AS-CR1: Gruandfos pumps seal

Share this site:

  • Product Detail
  • Make an inquiry
Structure Description:
Replacement of Grundfos pump seal
Operating Limits:
Temperature: -20℃ to +180℃
Pressure: ≤1.2MPa
Speed: ≤10m/s
Standard Size:12mm,16mm

Materials:
Stationary Ring: Carbon, Silicon Carbide, TC
Rotary Ring: Silicon Carbide, TC, ceramic
Secondary Seal: NBR, EPDM, Viton
Spring and Metal Parts: 316


Applications: Clean water, sewage water, oil and other moderately corrosive fluids

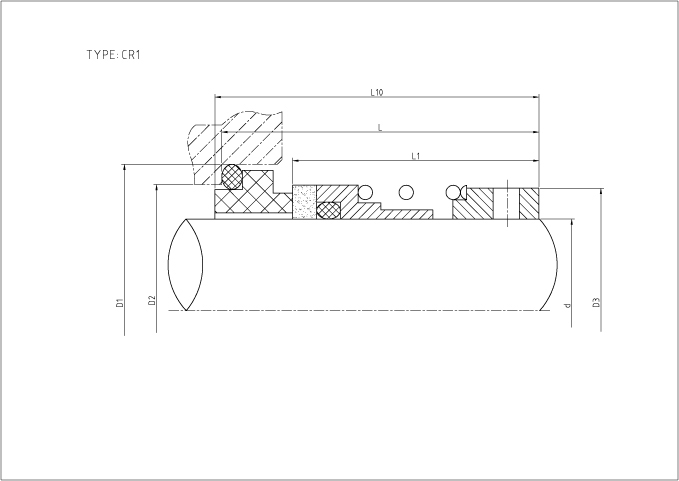

Size(d) D2 D1 D3 L1 L L10
12 19 23 22 31.0  39.0  40.5
16 23 27 26 32.5  40.5  41.5
Dimension in minimeter
