AS-Type 609: John crane Type 609 replacement

Description:
AS-Type 609: Perfect replacement of John crane Type 609 mechanical seal

Share this site:

  • Product Detail
  • Make an inquiry
AS-609
Structure Description:
Equivalent to John Crane metal bellow seal type 609
Welded metal bellows design

Operating Limits:
Temperature: -20---400℃
Speed: 20m/s
Pressure: 25bar
Standard size: 1.0''-4.0''

Material:
Seal ring: Car,Sic,Ssic,TC
Secondary seal: Carbon graphite
Spring and Metal parts:304,316,AM350,HAST.C,Inconel 718,Titanium

SS-609 is a high-temperature (to 425°C/800°F) rotating seal head assembly that incorporates all of the rugged features of the THIJO SDKJFAJF ype 604, but is intended for those demanding applications where a dependable, high-strength, rotating seal is preferred. A narrow cross-section design enables the SS609 to fit in the most popular pumps without expensive and time-consuming seal chamber modifications. This makes it the ideal seal for heat transfer, hydrocarbon and other applications that commonly use pumps with limited seal chamber clearances. Typical applications include hot hydrocarbons, aqueous solutions, aromatic fractionation products, crude oil fractionation products and heat transfer fluids.

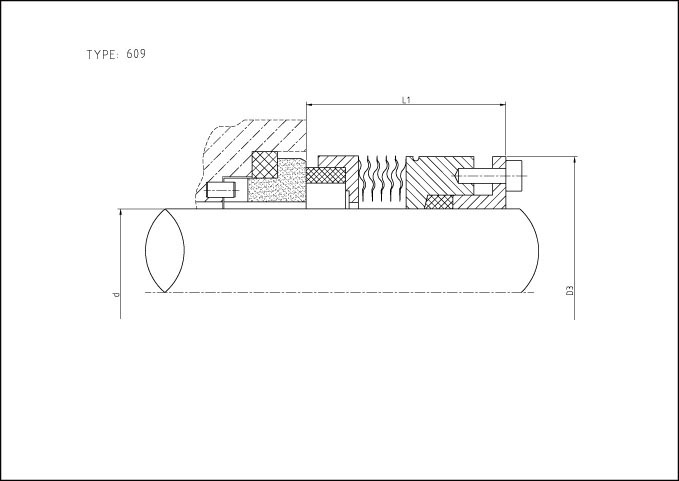

AS-609 Dimensions(Inches)
Size d D3 L1
1.000 25.40 41.28 38.95
1.125 28.58 44.45 39.87
1.250 31.75 47.63 40.66
1.375 34.93 50.80 40.66
1.500 38.10 53.98 40.66
1.625 41.28 57.15 40.66
1.750 44.45 60.33 41.48
1.875 47.63 63.50 41.48
2.000 50.80 66.68 42.26
2.125 53.98 69.85 42.26
2.250 57.15 73.03 43.86
2.375 60.33 76.20 43.86
2.500 63.50 82.55 44.65
2.625 66.68 85.73 45.44
2.750 69.85 88.90 45.44
2.875 73.03 93.65 47.83
3.000 76.20 96.82 47.83
3.125 79.38 101.60 47.83
3.250 82.55 104.78 47.83
3.375 85.73 107.95 47.83
3.500 88.90 111.13 47.83
3.625 92.08 114.30 47.83
3.750 95.25 117.48 47.83
3.875 98.43 120.65 47.83
4.000 101.60 123.83 47.83
